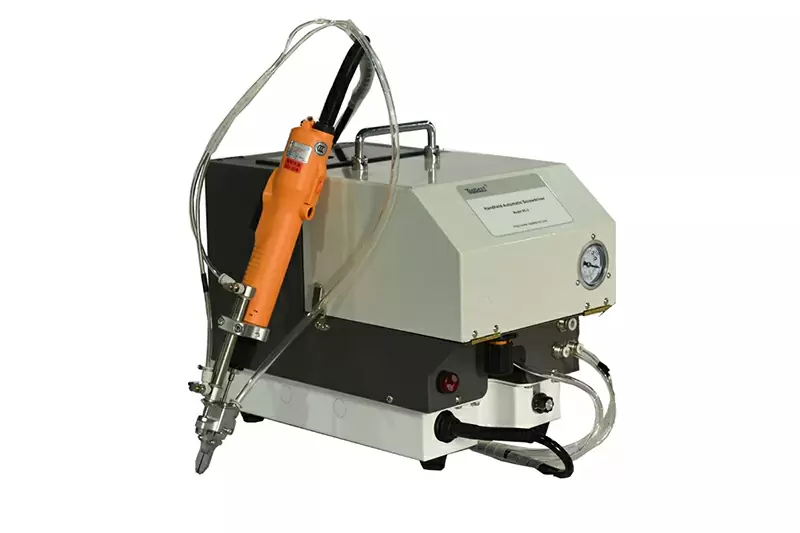

Descriptions
| Model | TBS-SC-2 |
| Dimension of the Machine | 390*260*260(MM) |
| weight | 15(KG) |
| Power Supply | AC220V, 50HZ |
| Power | 60W |
| Air Pressure Requirement | 0.4-0.6Mpa |
| Torque Range | 0.05-3N.M |
| Feeder Capacity | 10000PCS(M2*6) |
| Feeder Mode | Vibration and Air-blowing Type |
| Fixing Type | Pushing and pull |
| Screwdriver | Brushless Screwdriver |
| Tighten Efficiency | 40-60 PCS/MIN (According to the Screw Length) |
Advantages
1. Automatic screw feeding, sorting and fastening for various shapes screws. One-hand operation.
2. Torsion precision and convenient adjustment, ensure the quality of screw fastening
3.Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws. (Acousto-optic alarm)
5. High efficiency, do not need to pick up screw, move screw and put screw, just need to align the hole to fasten the screw
6. Sensor controls screws feeding one by one to avoid feeding repetition.
7. Can fasten screw very fast, around fasten 60 screw per minute.
Application range:
1.Scope of applicative screw: M1.2- M4,the screw length should be over 1.3 times greater than the diameter of screw head
2.Scope of applicative screw head: cross slot, triangle groove, hexagonal slot, H head, etc.
3.Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4.Screw materials: iron, copper, stainless steel, etc.
5.Materials of products to be screwed: plastic, iron, aluminum, etc.
6.Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
Features
Low cost and more flexible
Easy use and small volume
Applications
Communication industry: such as mobile phone, camera, hard disk, keyboard, printer, computer, DVD, home appliance, plastic, toy etc.
Auto industry: In many processes, parts have many screw processes.
The toy industry: Due to the continuous innovation and variety of products, the use of automatic locking screw machine is undoubtedly a good choice. It plays an important role in improving efficiency or saving cost. The automatic screw locking machine has strong adjustability and can meet the diversified needs of toy industry.
Hardware assembly industry: such as motor, motor parts assembly and other fields. The use of automatic screw locking machine instead of manual operation not only reduces the labor cost, but also improves the production efficiency.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
