Descriptions

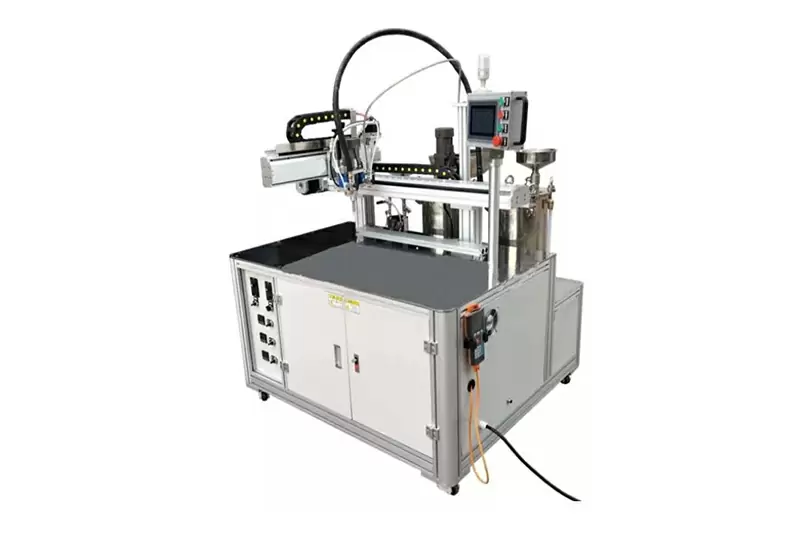

| Model | LZ2525 |
| Dimension of the Machine | 11250*1200*1650MM |
| weight | 300KG |
| Dispensing Range X/Y | 550*450(MM) |
| Max Load X&Y-/Z | 10KG/5KG |
| Moving Speed | 0.1-800/350 |
| Moving Range | X: 580MM |
| A, B Glue Ratio Range | 1:1-10:1 |
| Mix Speed | 0-1200RPM |
| Mixing Device | Adjustable Mixing Motor 220V 90W |
| Heating Device | Tank Bottom Heating 220V, 800W, Temp: 30-100 ℃ adjustable, heating for reducing the viscosity of glue |
| Programming Method | PLC |
| Glue Potting Accuracy | +/-2% above 10g and +/-0.1g below 10g |
| Input Power | AC220V 50HZ 4.5KW |
| Working Air Pressure | 0.4-0.7 Mpa |
| Display | Teach Pendant LCD |
| Working Environment | 5-40℃, Humidity 20%-95% |
Applicable glue:
A, B glue ratio range 1:1～10:
1, mainly used for dual – liquid epoxy, dual – liquid polyurethane, dual – liquid silicone rubber and other dual – liquid resin materials.
2, This machine is suitable for electronic sealing of electronic coil, connector, SPD, transformer, sensor, power switch, etc.
Main functions:
3 axis movement, automatic proportioning, quantitative dispensing, uniform mixing, automatic cleaning, anti-curing.
Features
Double platform, saving time for the products to be taken and placed.
It is independent mold. It is an aluminum profile casting structure with beautiful appearance.
It has a teaching pendant which is fast and easy to program.
The glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor to ensure the accurate.
It can meet many shapes point glue, such as point, line, arc etc.
It can satisfy different requirements, such as needles, syringes, glue valves, special needles for hot melt glue and so on.
The glue is smooth, clear-cut and no drawing.
Applications
Electric sound industry: loudspeaker, speaker, buzzer, earphone etc.
Communication industry: mobile phone keypad, mobile phone casing, interphone, telephone, FAX machine etc.
Computer: digital products, digital camera, electronic toys, and shell bonding.
Switch, connector, wire and plug connection etc.
Electronics: electronic components, integrated circuits, circuit board point solder paste, electronic parts fixation and dust proofing protection, LCD screen etc.
Optics: optical lens, optical head, magnetic head etc.
Other products that need liquid glue adhesion etc.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
