Descriptions
| Model | Parameters |
| Dimension of the Machine | 1600*1200*1400(MM) |
| weight | 100(KG) |
| Control Mode | 32 Position DSP |

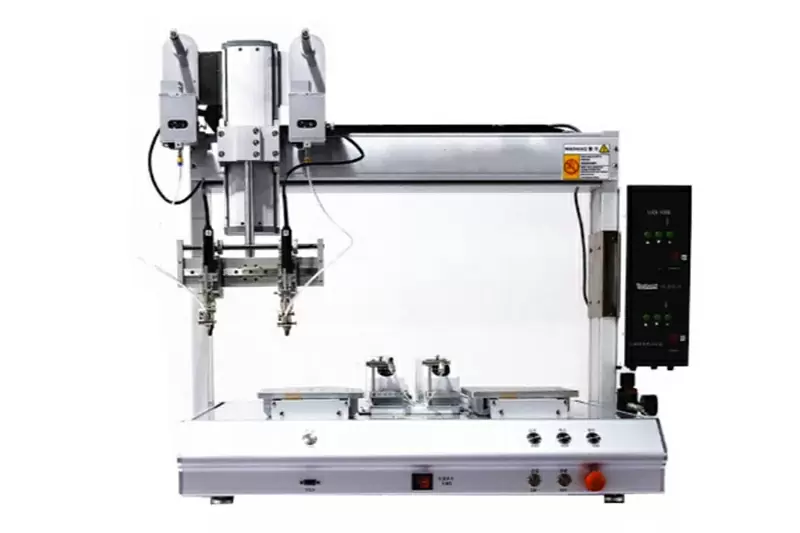

| Soldering Head | 2 Iron Heads Work at the Same Time |
| Working Stroke | X Axis 350MM, Z Axis 150MM, Platform 1000MM |
| Repeatability Accuracy | +/-0.05 |
| Machine Power | 600W |
| Power Supply | 220V,50-60HZ |
Advantages
Simple programming, operation control box mobile head position.
Soldering speed, high efficiency, a solder machine can save 5-6 people
Save tin wire, good consistency of solder joint
High power heating controller ensures the stability of continuous welding
The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
Production efficiency: 1800-2000 meters /H.
It can replace the manual process and optimize the quality control.
Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Features
Precision temperature controller to ensure temperature well-distributed and stability.
Program optimized, simple operation, teaching programming.
High precise feeding mechanism has broken tin function with no blockage.
With rotary solder function that can meet both spot welding and drag welding.
Applications

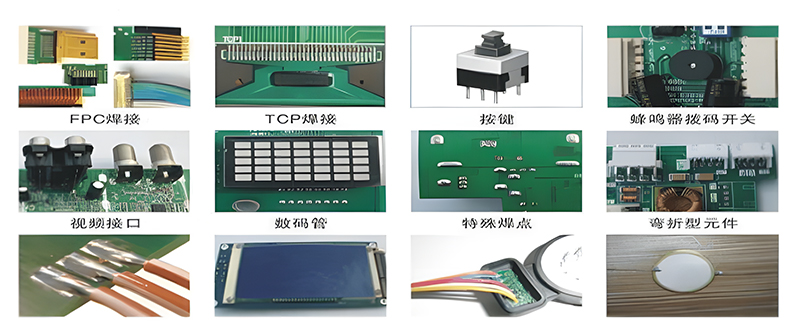

It is commonly used automatic welding equipment, used in automatic welding, iron shell, connector and other products.
It is widely used in automotive electronics, household appliances, components, LCD and Circuit board and other advanced manufacturing industries.
Due to temperature sensitive, reflow and wave soldering components, such as connectors, DIP packaging components, shields, sensors, transformers, cables, lines, trumpets, motor and so on.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
