Descriptions

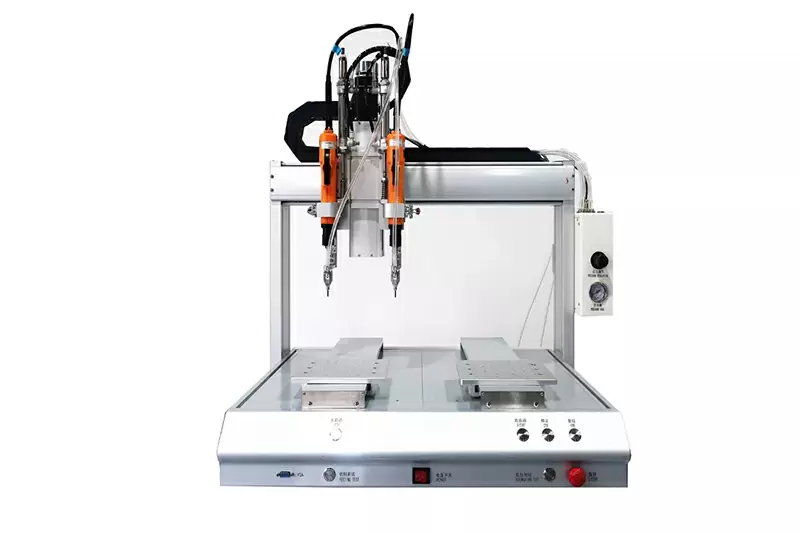

| Model | SC-6331S |
| Dimension of the Machine | 900*650*950(MM) |
| weight | 90(KG) |
| Processing Scope | 580*280*80(MM) |
| Maximum Jig Size | 290*280 (MM) for each Working Station |
| Power Supply | AC110V/220V, 50HZ/60HZ |
| Air Pressure Requirement | 0.4 to 0.8Mpa |
| Move Speed | X.Y (600-800MM/S)Z(400MM/S) |
| Control System | SCM, Touch Panel/Teach Pendant |
| Feeder Mode | Air-Blowing |
| Driving Mode | Closed-loop Motor + Synchronous Belt |
| Alarm System | Screw Stripped and Loose Alarm |
| Screwdriver Brand | SD/KILEWS/HIOS |
| Feeder Brand | TBS |
| Torque Range | Depends on Products |
| Repeated Accuracy | Automatic Air Cleaning |
| Working Temperature | +/-0.02MM |
| Max Load | 15KG |
| Working Environment | Temp 0-40℃, Humidity 20%-95% |
Advantages
1. Automatic screw feeding.
2. Available for M1-M4 screw.
3. Dual heads/stations to maximize efficiency.
4. Smart screwdriving to record torque for each screw (option).
5. Traction visual teaching programming.
Features

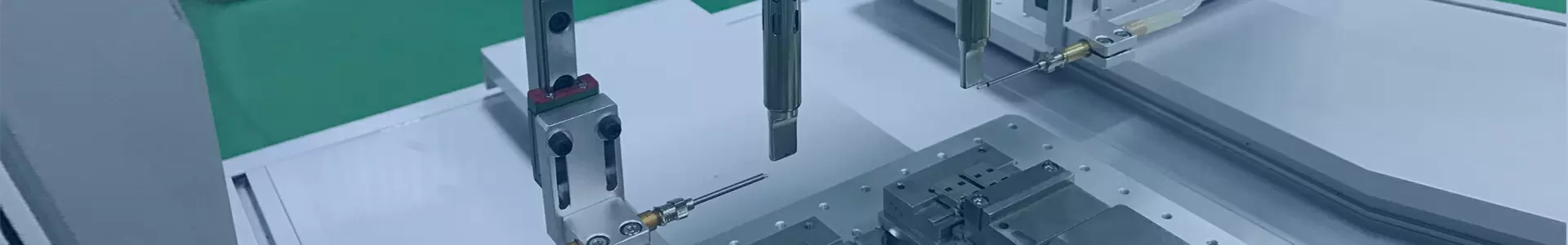

Double Y-axis platform, left and right locking screws are alternated.
Automatic screw absorption, automatic screw tightening.
Continuous feeding, providing the screw count function and anti-missing function.
Constant torque, screw loose thread and float lock, alarm function.
Three-axis linkage, high lock efficiency.
It is independent mold. It is an aluminum profile casting structure with beautiful appearance.
It has a teaching pendant which is fast and easy to program.
It is controlled by a high precision stepping motor to ensure the accurate.
Applications
Communication industry: such as mobile phone, camera, hard disk, keyboard, printer, computer, DVD, home appliance, plastic, toy etc.
Auto industry: In many processes, parts have many screw processes.
The toy industry: Due to the continuous innovation and variety of products, the use of automatic locking screw machine is undoubtedly a good choice. It plays an important role in improving efficiency or saving cost. The automatic screw locking machine has strong adjustability and can meet the diversified needs of toy industry.
Hardware assembly industry: such as motor, motor parts assembly and other fields. The use of automatic screw locking machine instead of manual operation not only reduces the labor cost, but also improves the production efficiency.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
