Descriptions

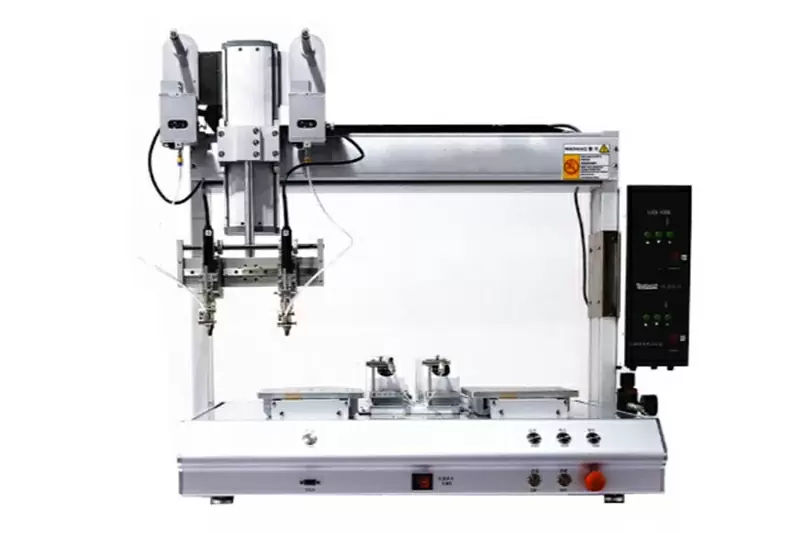

| Model | T-6331S (4Axis with two Soldering Heads, can not rotate) |
| Dimension of the Machine | 930*650*880(MM) |
| weight | 85(KG) |
| Processing Scope | 580*280*80(MM) |
| Maximum Jig Size | 250*280*70(MM) for each Working Station |
| Solder Wire | ￠0.6-1.2(MM) |
| Solder Feeding Speed | 1-50MM/S |
| Feeding Resolution | 0.1MM |
| Move Speed | X.Y (600-800MM/S), Z (400MM/S), R (300°/s) |
| Repeated Precision | +/-0.02MM |
| Temperature Control Range | 0-550°C |
| Temperature Control Accuracy | +/-1°C |
| Air Pressure Requirement | 0.4 to 0.8MPa (4 to 8KGF/CM2) as Dry Air |
| Control System | SCM+ Teach Pendant |
| Driving Mode | Precision Stepping Motor+Synchronous Belt |
| Soldering Method | Point Soldering/Drag Soldering |
| Iron Tip Cleaning | Automatic Air Cleaning |
| Working Temperature | 5-40°C |
| Working Humidity | 20-90% RH |
Advantages
1. Dual heads/station work at the same time.
2. Automatic solder wire feeding with notching.
3. Easy programming by teaching pendant.
4. Can perform dot soldering and slide soldering.
5. High precision temperature control and positioning system.
6. Fume extraction available.
7. Real-time monitoring on soldering iron tip. (optional)
8. CCD positioning (optional).
9. Record soldering temperature (optional)
10. Nitrogen protected soldering (optional)
Features
Precision temperature controller to ensure temperature well-distributed and stability.
Program optimized, simple operation, teaching programming.
High precise feeding mechanism has broken tin function with no blockage.
With rotary solder function that can meet both spot welding and drag welding.
Applications
It is commonly used automatic welding equipment, used in automatic welding, iron shell, connector and other products.
It is widely used in automotive electronics, household appliances, components, LCD and Circuit board and other advanced manufacturing industries.
Due to temperature sensitive, reflow and wave soldering components, such as connectors, DIP packaging components, shields, sensors, transformers, cables, lines, trumpets, motor and so on.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
