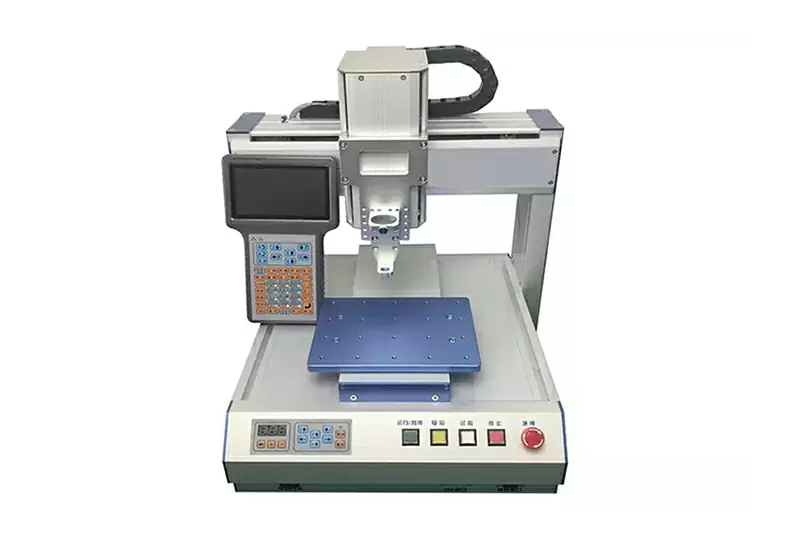

Descriptions
| Model | 200A | 300A | 400A |
| Dimension of the Machine | 375*425*480MM | 475*525*580MM | 575*625*580MM |
| weight | 35KG | 46KG | 56KG |
| Dispensing Range X/Y/Z | 220/220/50MM | 320/320/100MM | 420/420/100MM |
| Max Load X&Y-/Z | 10KG/5KG | 10KG/5KG | 10KG/5KG |
| Moving Speed X&Y/Z | 0.1-800/350MM/S | 0.1-800/350MM/S | 0.1-800/350MM/S |
| Decomposing Ability | 0.01 MM/S | 0.01 MM/S | 0.01 MM/S |
| Programming Method | Teach PendantMicrocomputer | Teach PendantMicrocomputer | Teach PendantMicrocomputer |
| I/O | 8 Input/8 output | 8 Input/8 output | 8 Input/8 output |
| Repeated Accuracy | +/-0.01MM/200 | +/-0.01MM/200 | +/-0.01MM/200 |
| Input Power | AC220V-350W | AC220V-350W | AC220V-350W |
| Memory | 1000 Files/U-Disk | 1000 Files/U-Disk | 1000 Files/U-Disk |
| Display | Teach Pendant LCD | Teach Pendant LCD | Teach Pendant LCD |
| Working Mode | Dot, Line, Arc, Circle | Dot, Line, Arc, Circle | Dot, Line, Arc, Circle |
| Driving Mode | Synchronous Belt +Dual Guide Rails | Synchronous Belt +Dual Guide Rails | Synchronous Belt +Dual Guide Rails |
| Working Environment | 5-40℃, Humidity 20%-95% | 5-40℃, Humidity 20%-95% | 5-40℃, Humidity 20%-95% |
Advantages
Suitable for wide range of fluid dispensing applications
Faster cycle and batch times
Easy integration into any manufacturing operation
Reduced production, material, and ownership costs
Suitable for wide range of fluid dispensing applications
Features
It is independent mold. It is an aluminum profile casting structure with beautiful appearance.
It has a teaching pendant which is fast and easy to program.
The glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor to ensure the accurate.
It can meet many shapes point glue, such as point, line, arc etc.
It can satisfy different requirements, such as needles, syringes, glue valves, special needles for hot melt glue and so on.
The glue is smooth, clear-cut and no drawing.
Applications
Electric sound industry: loudspeaker, speaker, buzzer, earphone etc.
Communication industry: mobile phone keypad, mobile phone casing, interphone, telephone, FAX machine etc.
Computer: digital products, digital camera, electronic toys, and shell bonding.
Switch, connector, wire and plug connection etc.
Electronics: electronic components, integrated circuits, circuit board point solder paste, electronic parts fixation and dust proofing protection, LCD screen etc.
Optics: optical lens, optical head, magnetic head etc.
Other products that need liquid glue adhesion etc.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
