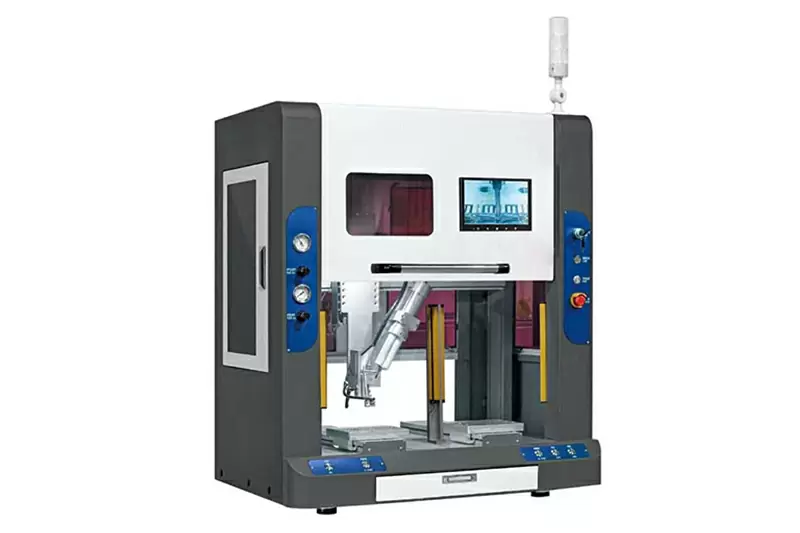

Descriptions
| Model | DJ-6331CM |
| Dimension of the Machine | 900*630*1025MM900*630*1095MM(with Signal Tower) |
| weight | 150(KG) |
| Max Product Size | 250*280MM |
| Driving Mode | Stepping Motor + Synchronous Belt |
| Control Mode | Microcontroller + Teach Pendant |
| Moving Range | X: 580MM |
| Y1, Y2: 280MM | |
| Z: 100MM, R:360° | |
| Max Speed | X, Y1, Y2, Axis 600MM/Sec |
| Z Axis 400MM/Sec | |
| Repeated Accuracy | X, Y1, Y2 Axis +/-0.02MM |
| Z Axis +/-0.02MM | |
| Dispensing Controller | Precision Dispensing Controller |
| Memory | 1000 Files |
| Camera Pixel | 300K Pixel Micro camera |
| Max Load | 15KG |
| Input Voltage | 220V AC/50HZ (110V AC/60HZ) |
| Air Pressure | 4-5KG/CM |
| Working Environment | 0-40 Temp 0-40℃, Humidity 20%-95% |
Advantages
Real time dispensing process monitoring
Rich experience on dispensing fastening application
Features
Double platform, saving time for the products to be taken and placed.
It is independent mold. It is an aluminum profile casting structure with beautiful appearance.
It has a teaching pendant which is fast and easy to program.
The glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor to ensure the accurate.
It can meet many shapes point glue, such as point, line, arc etc.
It can satisfy different requirements, such as needles, syringes, glue valves, special needles for hot melt glue and so on.
The glue is smooth, clear-cut and no drawing.

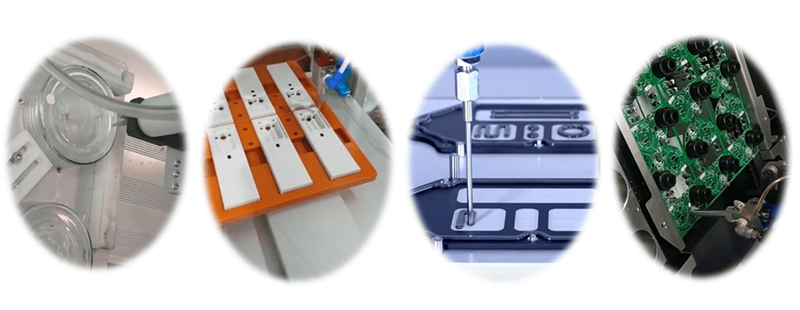

Applications
Electric sound industry: loudspeaker, speaker, buzzer, earphone etc.
Communication industry: mobile phone keypad, mobile phone casing, interphone, telephone, FAX machine etc.
Computer: digital products, digital camera, electronic toys, and shell bonding.
Switch, connector, wire and plug connection etc.
Electronics: electronic components, integrated circuits, circuit board point solder paste, electronic parts fixation and dust proofing protection, LCD screen etc.
Optics: optical lens, optical head, magnetic head etc.
Other products that need liquid glue adhesion etc.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
