Descriptions
| Parameters | Description |

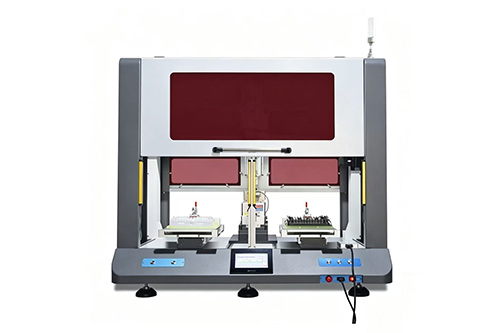

| Machine Model | SX-8441 |

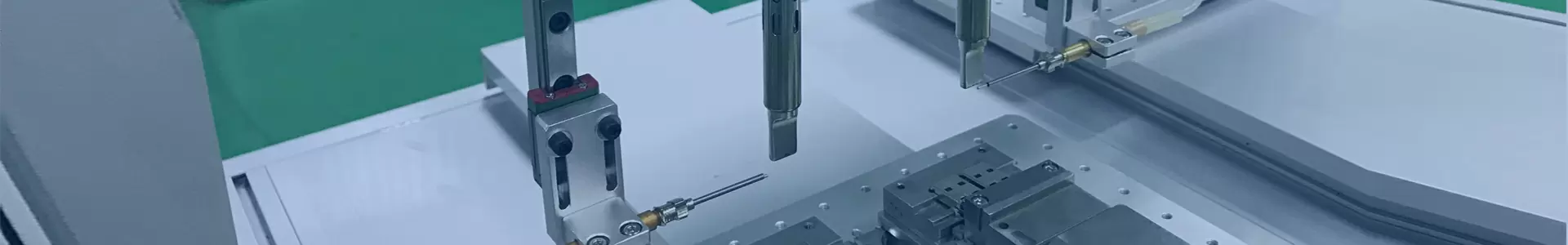

| Machine Type | Suction-type (vacuum pickup) automatic screw locking machine |
| Screw Driving Configuration | Single screw driving head |
| Working Platform | Left & right dual stations |
| Screw Feeding Method | Automatic feeder, centralized screw pickup |
| Screw Pickup Method | Vacuum nozzle pickup |
| Operation & Programming | Touch screen HMI + external teaching controller |
| Safety Configuration | Protective cover, safety light curtain, emergency stop and related interlock |
| Axis Drive Method | Stepper motor + timing belt (belt drive) |
| Axis Travel X/Y1/Y2/Z | 760 / 380 / 380 / 100mm |
| Screwdriver | Servo electric screwdriver |
| Applicable Products/Screws | Subject to project samples, fixtures, screwdriver bits and feeder configuration |
| Input Power | Subject to machine nameplate and project electrical drawings |
| Air Supply & Vacuum | Subject to machine technical documentation, pneumatic circuit diagram and setpoints |
| Overall Dimensions | L1300 * W850 * H1200MM |
Advantages
Just need to loading, reduce the labor intensity of workers.
Deep-hole screw fastening
High reliability, automatic alarm system, working >20 hours
Custom models for large-size irregular-shaped products. The fixture material is customized to match the material properties of the product.
Rich experience on screw fastening application
Features
Double Y-axis platform, left and right locking screws are alternated.
Automatic screw absorption, automatic screw tightening.
Continuous feeding, providing the screw count function and anti-missing function.
Constant torque, screw loose thread and float lock, alarm function.
Three-axis linkage, high lock efficiency.
It is independent mold. It is an aluminum profile casting structure with beautiful appearance.
It has a teaching pendant which is fast and easy to program.
It is controlled by a high precision stepping motor to ensure the accurate.
Applications
Communication industry: such as mobile phone, camera, hard disk, keyboard, printer, computer, DVD, home appliance, plastic, toy etc.
Auto industry: In many processes, parts have many screw processes.
Screw locking for irregular-shaped products in special industries such as medical, aerospace and military sectors.
The toy industry: Due to the continuous innovation and variety of products, the use of automatic locking screw machine is undoubtedly a good choice. It plays an important role in improving efficiency or saving cost. The automatic screw locking machine has strong adjustability and can meet the diversified needs of toy industry.
Hardware assembly industry: such as motor, motor parts assembly and other fields. The use of automatic screw locking machine instead of manual operation not only reduces the labor cost, but also improves the production efficiency.
After-Sales and Additional Services
7*24 online service.
Provide video for reference, remote service is available.
One-year warranty, except for consumables, the other parts can be replaced free of charge within one year.
We provide free training in our factory,
Export standard wooden crate is provided.
Lead time: standard:5-10 days. Customized: 15-20days.
Relevant certificates in different countries are available.
