Applications

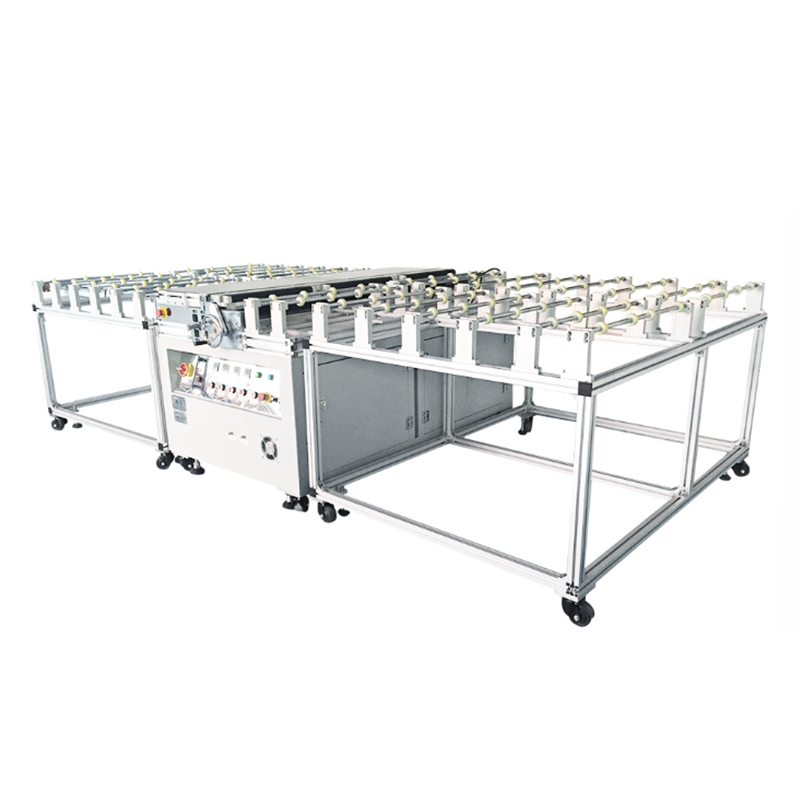

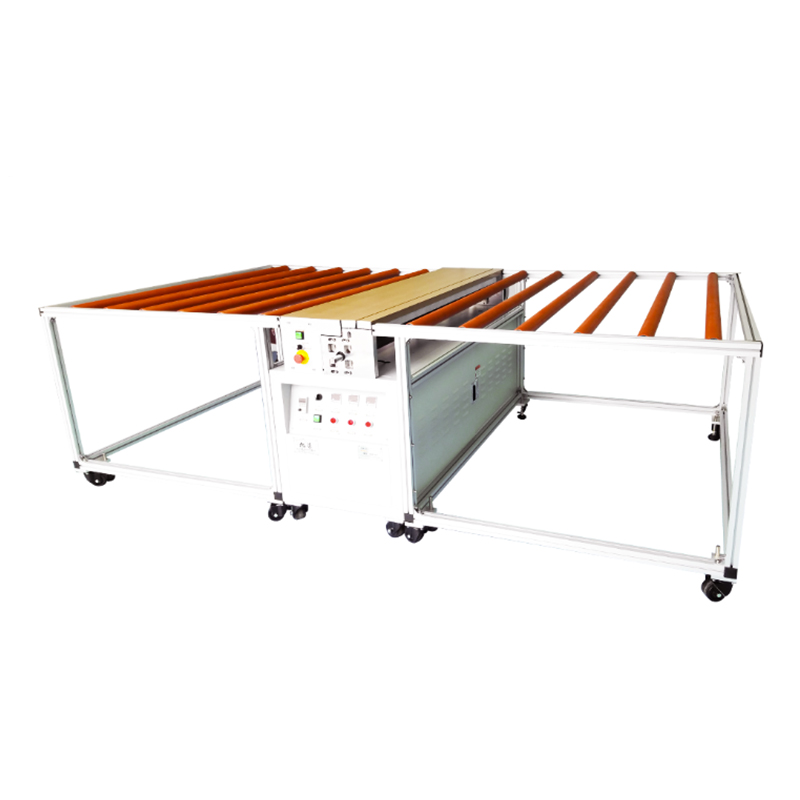

Polarizing Film Removal Machine XCP32-J6 is suitable for polarized peeling processes during the scratching and repair of various liquid crystal flat plate surfaces. After filming of various flat products, the diaphragm peeling process is performed.
Widely used in: polarized stripping of various LCD screens.
Introductions
- Place the glass on the heating platform of the equipment, turn on the power supply, adjust the ionic air rod, and preheat the product;
- Use a blade to tear apart any corner of the LCD for 50-80mm, stick the tearing film guide tape and paste the feed tape on the other end of the glass;
- Open the closed tearing platform and place the guide tape on the roller;
- Close the open tearing platform and fasten it;
- Adjust the motor to the forward rotation direction and adjust the frequency, and start the start button to start tearing the membrane;
- The film is teared, the product is removed, the platform is opened, and the waste is removed.
Parameters
Input Power Supply |
AC380V 50-60Hz |
Temperature Control Quantity |
4 |
Rated Power |
3-3.5KW |
Temperature Range |
RT-100℃ adjustable |
Dimensions |
L4460*W2700*H940mm |
Program Control |
Omron Relay |
Operation Mode |
Key Operation |
Electrostatic Elimination |
Ion Wind Elimination (Ionic Wind Rod*3) |
Heating Method |
Constant Temperature Heating (Four-Zone) |
Body Main Material |
Steel Structure + Type Aluminum |
Applicable Sizes |
Suitable For Within 85 Inches (Custom-Made) |
Thermocouple |
Type K |
Features
- The ultra-small gap film stripping platform is designed with a closed structure to ensure that the glass is not damaged when tearing the film and is compatible with the convenience of feeding and material removal.
- The anti-static switch wheel is used as an auxiliary load stage, which greatly reduces the damage rate caused by non-horizontal force or moving resistance during the film tearing process and eliminates static electricity.
- It adopts a Japanese temperature controller with three-division preheating and has a built-in PID temperature self-tuning function module, which can make the temperature control more accurate.
- Add a double-ion air rod to the tear film area and the contact area between the glass and the stage to eliminate static electricity.
- The rack split mechanism is adopted to facilitate disassembly, assembly and transportation.
- The roller adjustment mechanism is used to adjust the tear film angle at will.
- A frequency conversion adjustment mechanism is used to achieve a uniform speed and stable tearing film.
- The electromagnetic clutch system can avoid glass damage caused by slippage caused by slippage due to power loss of the film-tearing motor or excessive resistance to tearing the film.
