Applications

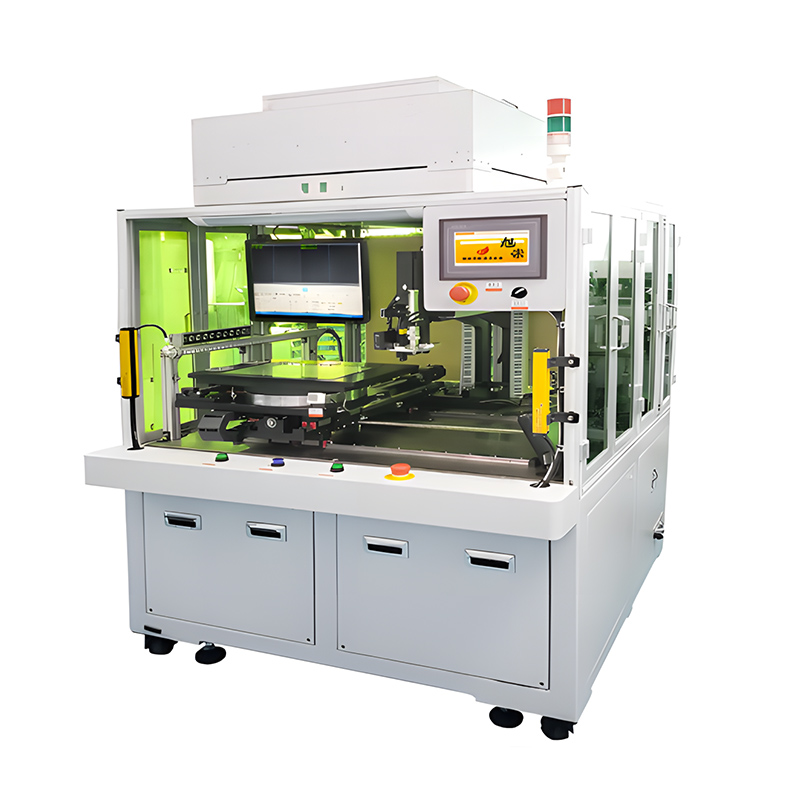

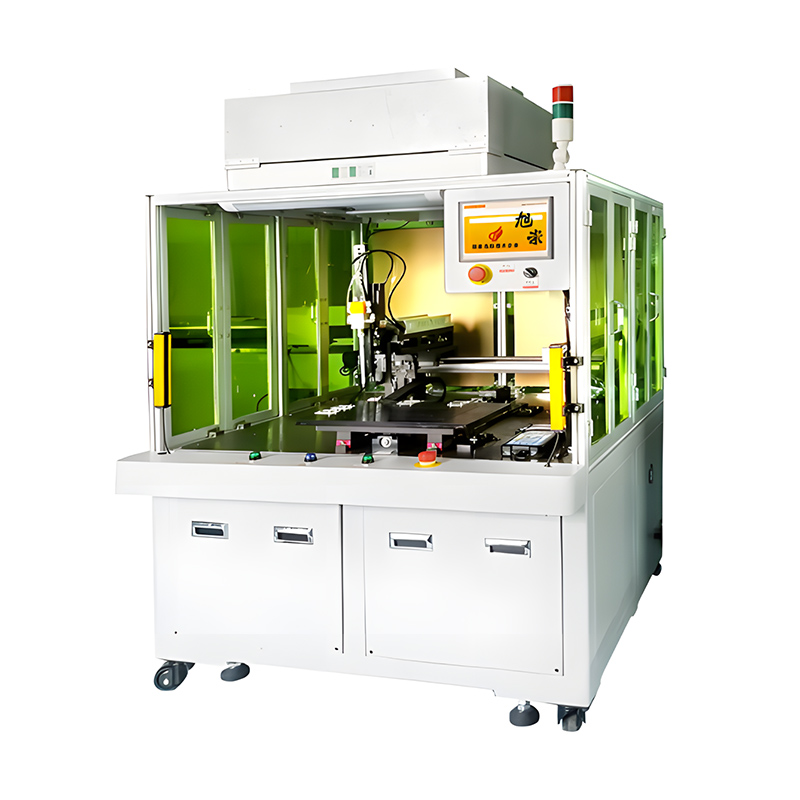

Auto Alignment Dispensing Machine XCD77-A8 is suitable for various high-viscosity UV liquid glue dispensing processes. It is widely used in various LCD Panel and Touch Panel dispensing production processes.
Introductions
- Manually place the cleaned Glass on the automatic alignment platform and press the vacuum button;
- The automatic alignment platform moves to the photo taking position. After the photo taking is completed, the platform automatically calibrates;
- The automatic alignment platform moves to the height measuring position, and the laser position moving sensor measures the height of the Glass;
- The automatic alignment platform moves to the dispensing starting position, the Z axis descends (according to the product height difference measured by the laser position moving sensor, the Z axis descends automatically), and the dispensing valve opens;
- The automatic alignment platform moves according to the set graphics. After the dispensing is completed, the dispensing valve is closed and the Z axis rises;
- The automatic alignment platform returns to the standby position, the platform vacuum solenoid valve is closed, and the material is manually unloaded. Repeat the above actions.
Parameters
| Input Power |
220V 50-60HZ |
Dispensing Mechanism |
The Brake Servo Motor Controls the Up and Down Movement of the Dispensing Head |
| Rated Power |
3.5KW |
LCD Carrier |
X Y θ Automatic Alignment |
| Working Pressure |
0.5-0.7Mpa, Dry Air Source |
Program Control |
PLC |
| Edit Mode |
Robot Teaching Pendant |
Overall Dimension |
L850*W1000*H1750mm(without FFU) |
| Repeat Accuracy |
±0.005mm/Axis |
Program Record Container |
At Least 5000 Groups |
| Security Protection |
Electrostatic Protection + Grating Protection + Leakage Protection |
Weight |
350KG |
Features
- The HMI can conveniently set and display various parameters; such as platform in and out speed, dispensing time, vacuum value, vacuum setting area, etc.
- Safety grating effectively protects operators.
- Before glass vacuum adsorption, the dust detection light can be used to check and confirm dust spots again to ensure product quality.
- The platform adopts XYθ three-axis automatic control to ensure the dispensing accuracy of the machine. ensure UV fast curing and dispensing efficiency.
- The dispensing control system can set various graphics such as points, lines, arcs, etc. and automatically store programs through the robot teaching pendant.
- Commonly used function buttons use dual start switches to effectively protect against misoperation.
- Uses a set of CCD lenses for automatic alignment and a Fastech automatic alignment system.
- Laser displacement sensors measure height and automatically compensate to ensure consistent dispensing height.
