Testing and Dispensing Machines

Applications

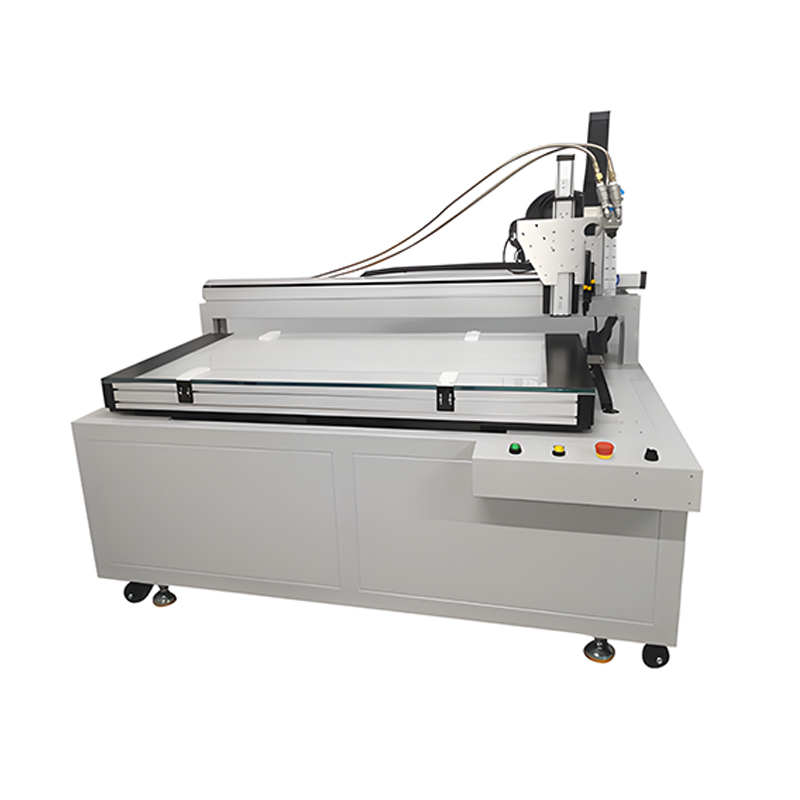

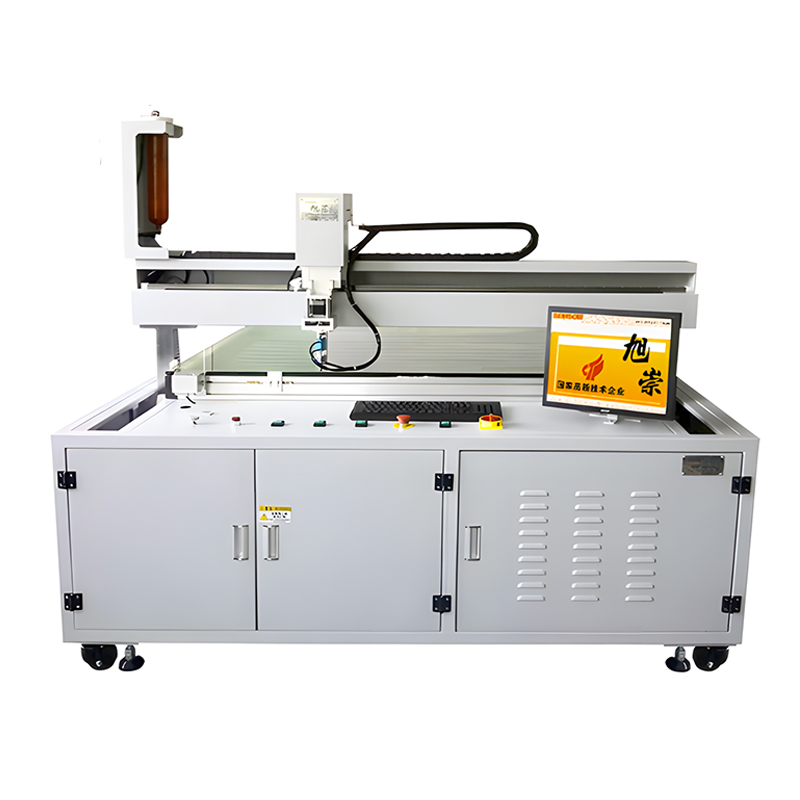

Testing and Dispensing Machine XCD73-A6 is suitable for various LCD PANEL, TOUCH PANEL, ELECTRONIC INKS, COG, FOG, OLB, FOB and PWB process bonding to complete power-on test dispensing. It is widely used in large-size LCD PANEL, TOUCH PANEL and ELECTRONIC INKS test dispensing, production bonding test dispensing.

Introductions

• Power on, ventilate, and reset.
• Position the open cell on the backlight platform and test the power on.
• After the test, the visual system automatically grabs the Mark point, the height gauge automatically tests the product height, press the dispensing start button, and the dispensing head dispenses glue according to the dispensing pattern.
• After dispensing is completed, the dispensing head returns to the standby position and removes the cell.
• Repeat steps 2 to 4

Parameters

Features

• The dispensing group uses a high-precision dispensing controller and dispensing control system with high dispensing accuracy.
• The backlight group checks the effect after bonding.
• UV pre-curing
• Ensure UV fast curing to ensure dispensing efficiency.
• Motion control group uses a high-precision dispensing controller and dispensing control system with high dispensing accuracy.
• Automatic height measurement can ensure the dispensing Z-axis dispensing stroke.
• Visual dispensing can ensure the precise dispensing position.
