Applications

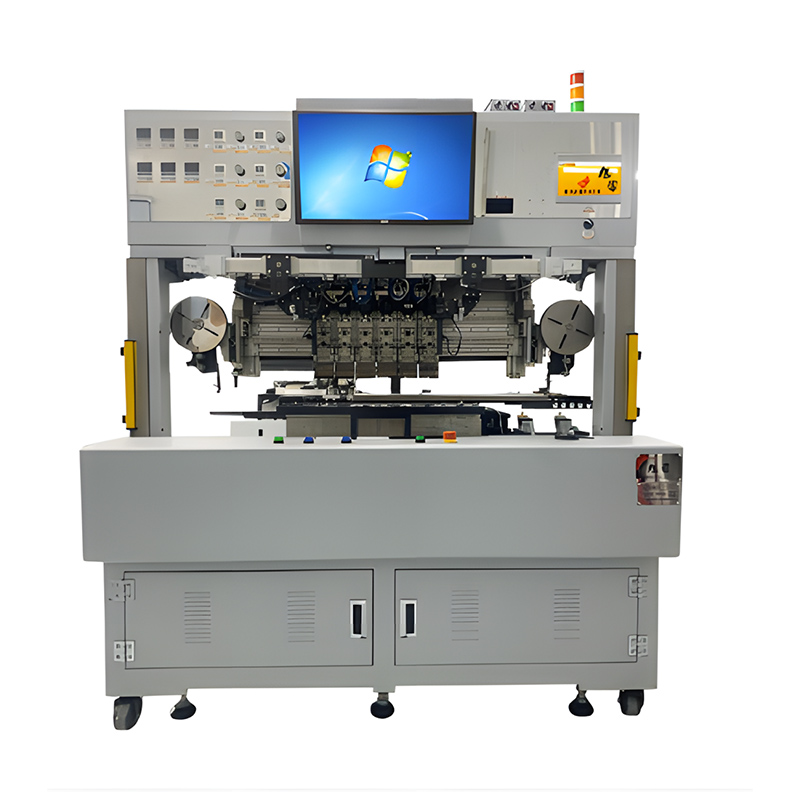

FOB and PWB Automatic Alignment Bonding Machine LOA55-X3 is suitable for hot pressing bonding of various PCB, PCBA and FPC, COF, TAB in FOB and PWB processes.
Introductions
- Start the machine and adjust the corresponding parameters;
- After the parameter setting is completed, the panel carrier moves to the receiving position, the panel is placed on the carrier, and the positioning card is in position;
- Press the vacuum button to adsorb the panel, the positioning mechanism descends, press the double start button, and the carrier moves to the photo position;
- Place the PCB on the fixture, click the PCB vacuum button and adsorb it firmly;
- Click the left and right start buttons, the PCB automatically corrects the carrier and moves to the photo position;
- After the photo is OK, the PCB automatically corrects the carrier and moves to the bonding position:
- The panel carrier moves to the photo position to take a photo. After correction, the carrier moves to the bonding position, the hot press head heats up, presses down, the bonding time is up, the bonding is completed, and the Z axis of the press head motor rises.
- The carrier moves to the next station and repeats the above actions. After bonding, the carrier moves to the unloading position and unloads manually.
Parameters
| Input Power |
AC220V 50-60HZ |
Operating Mode |
HMI |
| Rated Power |
10.5KW |
LCD Carrier Platform |
Servo Automatic Memory Movement |
| Working Pressure |
0.4~0.8Mpa |
Counterpoint |
Manually |
| Pressure Head Size |
L70mmX6(can be Customized) |
Thermocouple |
K Type |
| Heating Method |
Thermostatic |
Rolling Method |
Auto Roll-up |
| Program Control |
PLC+ Servo + Automatic Vision |
Available |
L1200*500mm(Can Be Customized) |
| Weight |
950KG |
Overall Dimensions |
L1550*W1500*H2150mm |
Features
- The platform adopts X-Y-Z-θ four-axis automatic control to ensure accurate alignment of the machine.
- PCB alignment, CCD camera X-Y-θ correction automatic alignment.
- The pressure head mechanism, the pressure head can select multiple sections of arbitrary positions and press down in sequence, and the pressure and temperature can be controlled separately.
- The motor drives the pressure head, and the pressure head is equipped with a servo motor + cylinder unit to make the output more stable, and is equipped with an automatic skin rolling function.
- The positioning mechanism adopts an oblique push positioning method, which can accurately position and prevent damage to the product.
- The glass CCD mechanism adopts automatic visual system correction to improve the bonding accuracy.
